產品：K56
產品特性:
■特點：
☆與機床主軸直接連接,剛性好,精度高。
☆適用于加工矩形和方形或其它異形工件。
☆卡盤有二套獨立的斜楔驅動，2和4爪把工件定心于第一個軸上。
☆1和3爪把工件定心于第二個軸上，夾緊工件安全可靠。
☆卡盤重復定心精度高。
■Specificity:
☆The chucks can be mounted with the spindle nose directly, with high rigidity and high accuracy.
☆Sutitable for processing square or the other special components.
☆The chucks has wto independent wedge driver,2 and 4 jaw center the workpieces at the first axie.
☆1 and 3 jaw center at the second and with safety clamping.
☆The chuck has high repeating centering accuracy.
產品詳情

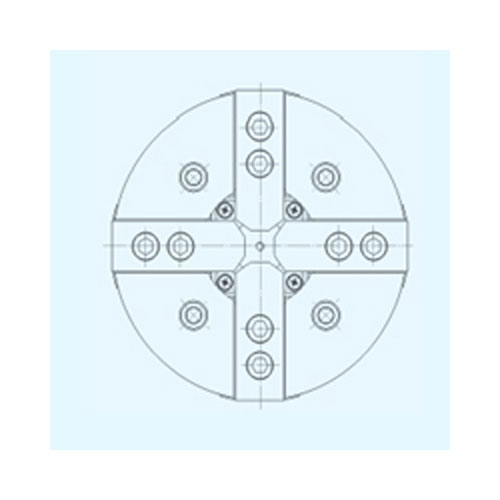

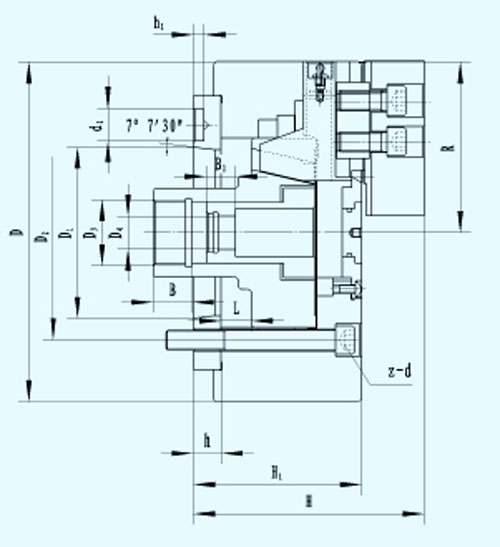

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
h
|
h1
|
H1
|
H
|
B
|
B1
|
R
|
d1
|
z-d
|
|
max
|
min
|
|
K56 200
|
210
|
106.375
|
133.4
|
M38×1.5
|
16
|
17
|
6.5
|
104
|
143
|
24
|
18
|
105
|
109.4
|
19.5
|
4-M12
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
|
|
許用夾緊力kN
Max. gripping force
|
|
極限轉速r/min
Max. speed
|
推薦油缸
Rec.
cylinder
|
|
|
|
K56 200
|
19
|
8.8
|
|
4300
|
PSS 130
|
|
